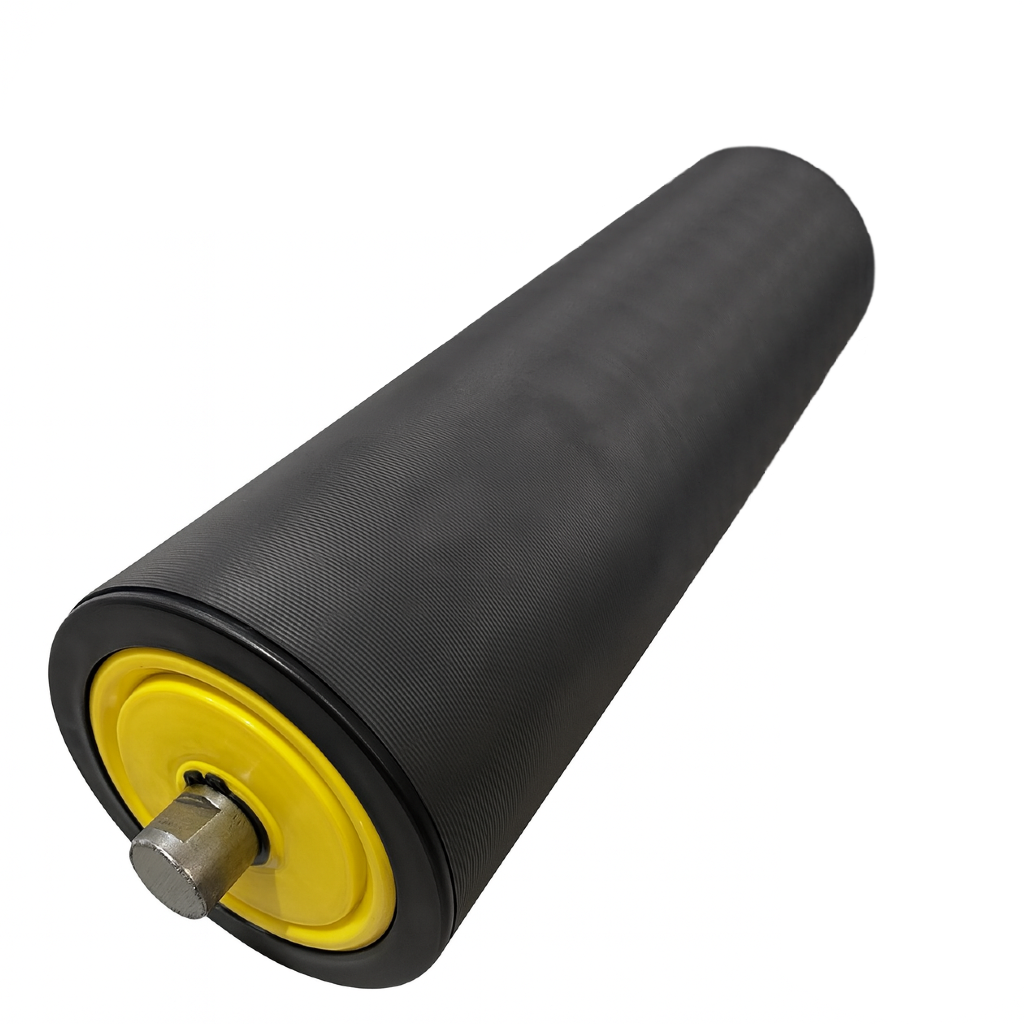

HDPE idlers are engineered for superior performance, offering a lightweight alternative to steel rollers while maintaining excellent structural strength. Manufactured with precision-moulded HDPE shells and an advanced bearing and sealing arrangement, these idlers minimise contamination, reduce friction, and extend service life. Their low weight improves handling and installation efficiency, making them ideal for modern conveyor systems requiring durability, reliability, and long-term cost savings.

SPECIFICATIONS
Idler Diameter (D): 127
Face Length (FL): 660
Shell Wall Thickness (WT): 11.5
Shaft Diameter (SD): 25
Shaft Length (SL): 704
Shaft Mounting Centre (MC): 682
Shaft Slotted Width (CW): 12
Shaft Slot (CD): 18
Product Type: CONVEYOR IDLER
Belt Width: 1800
Material: HDPE ROLLER
Coating: BLACK HDPE
Standards: SANS 1313-SERIES 25
Shaft Mounting: CLOSED END-SLOTTED
Bearing Type: 6205 2RS C3 BEARINGS
Bearing Fix: EXTERNAL CIRCLIP
Seals: ANTI-SEIZE LAB
Caps: ROCK SHIELD
All dimensions are in mm.
