R808,50
RETURN IDLER-CONVEYOR FLAT RETURN IDLER-127/1146/25 is engineered as a durable steel conveyor idler designed to ensure reliable material handling performance across mining, quarrying, and industrial applications. Its robust construction supports consistent belt tracking, reduced rolling resistance, and long operational life. The idler is manufactured to stringent quality standards, offering smooth rotation and improved load distribution. Each unit is designed to operate in harsh environments, resisting abrasion, dust ingress, and mechanical fatigue. This product provides dependable performance for both new installations and replacement applications, ensuring efficient and reliable conveyor operation.

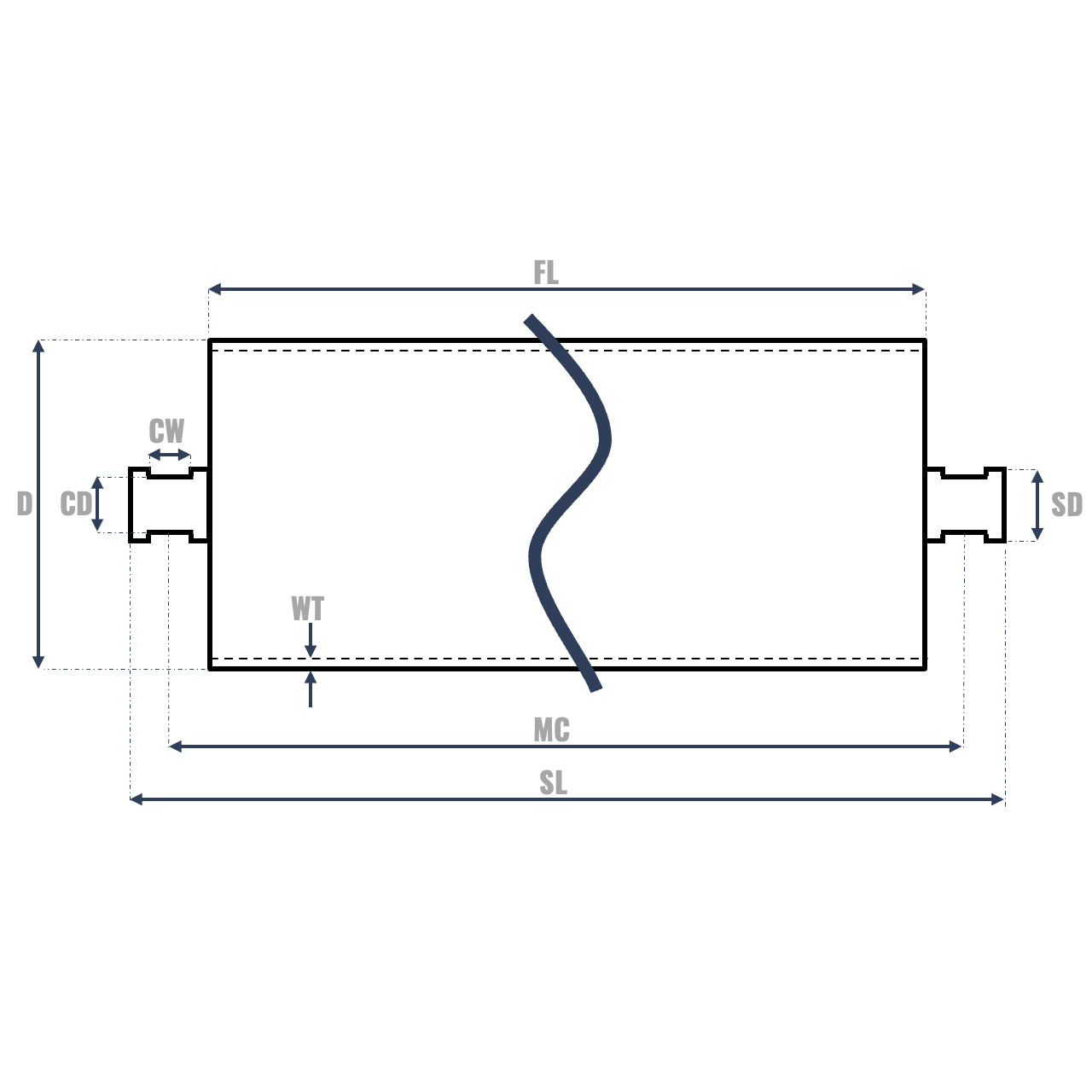

SPECIFICATIONS
Idler Diameter (D): 127
Face Length (FL): 1146
Shell Wall Thickness (WT): 3.8
Shaft Diameter (SD): 25
Shaft Length (SL): 1190
Mounting Centre (MC): 1168
Shaft Slotted Width (CW): 12
Shaft Slot (CD): 18
Product Type: RETURN IDLER
Product Name: RETURN IDLER-CONVEYOR FLAT RETURN IDLER-127/1146/25
Belt Width: 1050
Material: STEEL ROLLER
Coating: BLACK PAINTED
Standards: SANS 1313-SERIES 25
Shaft Mounting: CLOSED END-SLOTTED

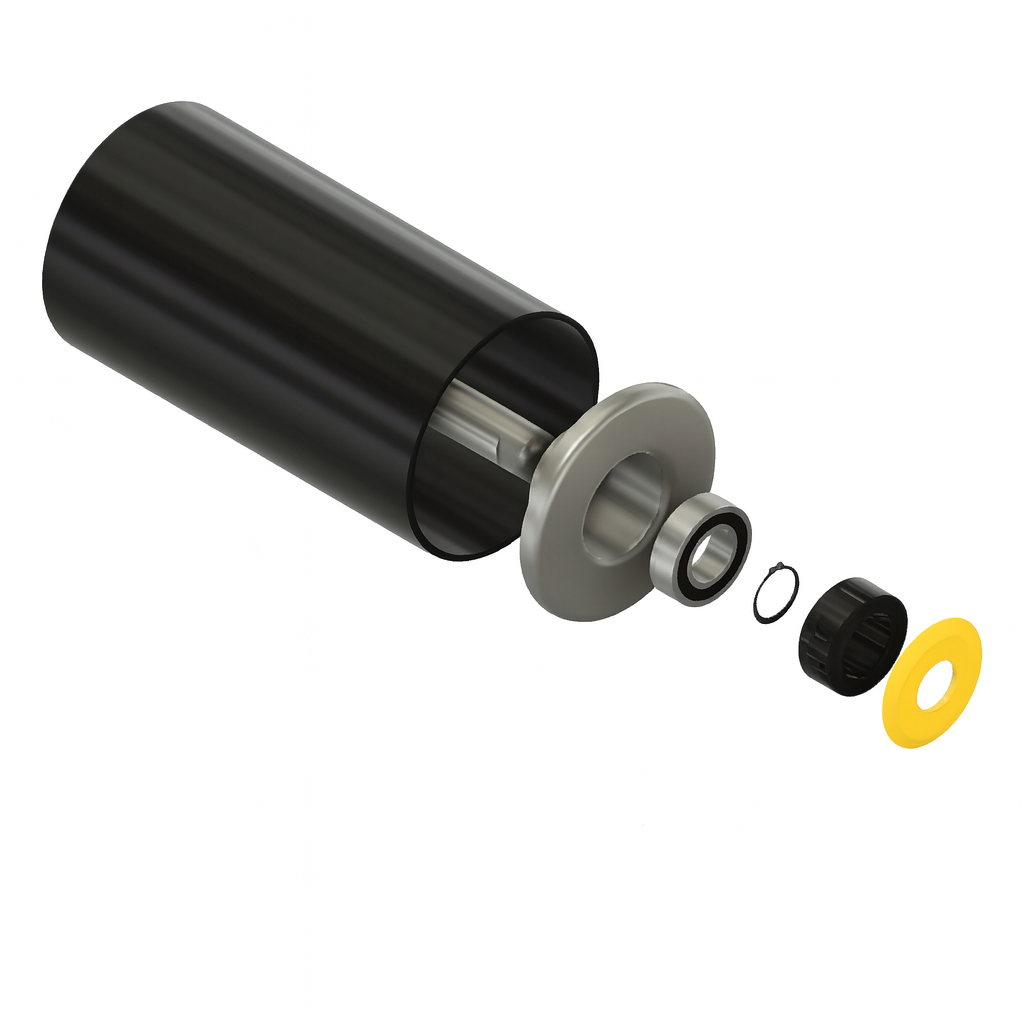

Bearing Type: 6205 2RS C3 BEARINGS
Bearing Fix: EXTERNAL CIRCLIP
Seals: 5 PART LAB SEALS
Caps: DUST COVER (FLINGERS)
All dimensions are in mm.
You can find all available product documentation in the list below.
These files are provided to support your planning, selection, and application requirements. Simply choose the items you need and download them directly.
Drawing Download Link: RETURN IDLER-CONVEYOR FLAT RETURN IDLER-127-1146-25 PDF
3D Model Download Line: RETURN IDLER-CONVEYOR FLAT RETURN IDLER-127-1146-25 STP
If you require additional information or customised documentation, our team is ready to assist.
