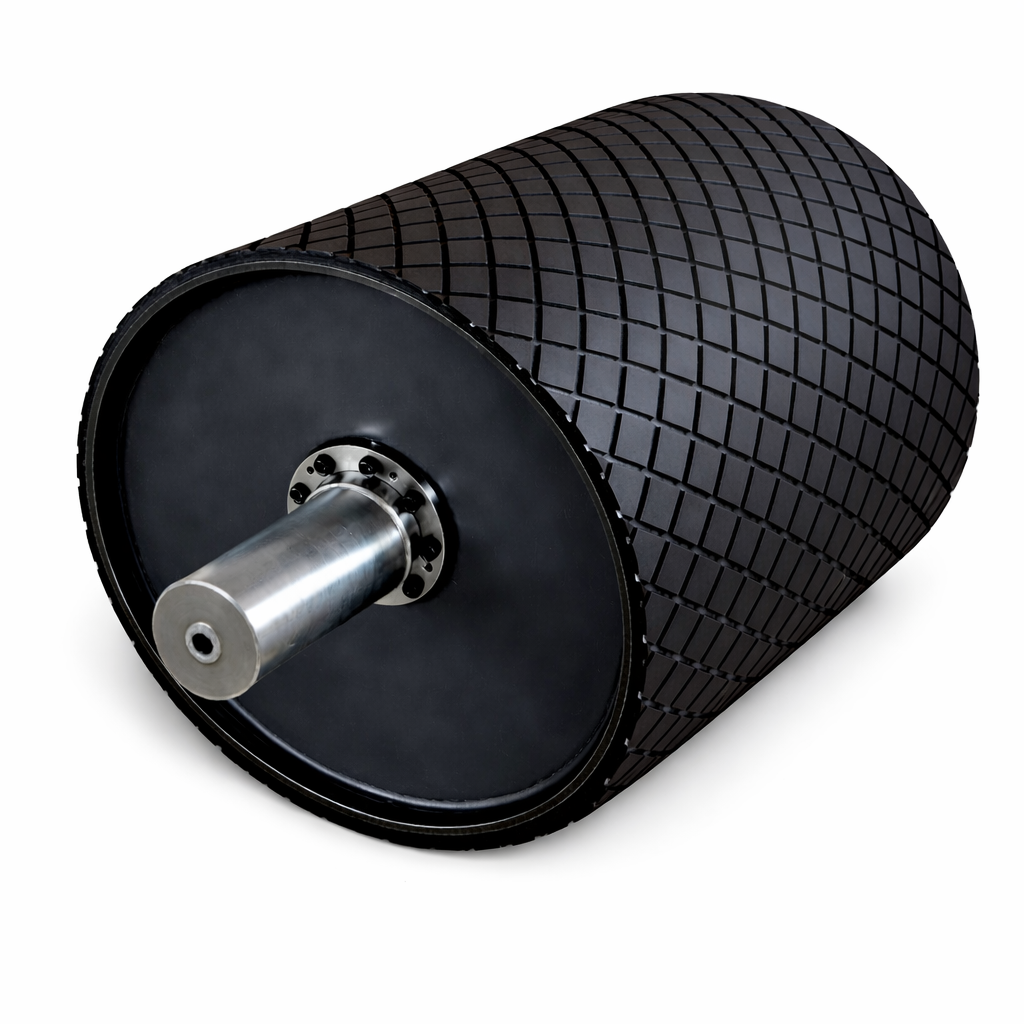

PULLEY D406mm FW900mm BW750mm is a premium heavy-duty conveyor head pulley designed for demanding mining and industrial environments. Engineered for reliability and long service life, it features a robust steel drum, precision-machined shaft, and durable diamond-pattern rubber lagging to maximise traction and minimise belt slip.

SPECIFICATIONS
TYPE: PULLEY
LAGGING TYPE: Diamond Lagging
LAGGING MATERIAL: Rubber SH65
SHAFT MATERIAL: BMS
LOCKING DEVICE: BIKON 1006
SHAFT END: Threaded Connection Hole
PULLEY DIAMETER (PD): D406mm
BELT WIDTH: 750mm
FACE WIDTH (FW): 900mm
WALL THICKNESS (WT): 8mm
LAGGING THICKNESS (LT): 10mm
SHAFT SIZE: 75mm/65mm
SHAFT DIAMETER (SD-1): 75mm
SHAFT LENGTH (SL-1): 900mm
SHAFT DIAMETER (SD-2): 65mm
SHAFT LENGTH (SL-2): 300mm
TOTAL SHAFT LENGTH (TSL): 1500mm

Note: Any dimensional changes can be requested
