The HEAVY DUTY BOW SHACKLE – 2000 KG is a heavy-duty bow shackle designed for lifting and rigging applications, manufactured to meet U.S. Federal Specification RR-C-271D standards. With a working load limit of 2000 KG , it provides reliable strength and durability for industrial use. The body is made from high tensile steel, quenched and tempered, with an alloy steel pin for superior performance. The shackle features a galvanised body and painted pin for corrosion protection and easy identification.

• Material: Body high tensile steel, quenched and tempered pin alloy steel
• Safety factor: 5 times WLL = minimum breaking strength
• Finish: Galvanised body and painted pin
• Identification:
Shackle Body: ELE (manufacturer’s ID), batch number, material grade (6), working load limit in tonnes
Shackle Pin: ELE (manufacturer’s ID) and material grade (6) for shackles 1.5t and larger, material grade (6) for shackles 1t and smaller

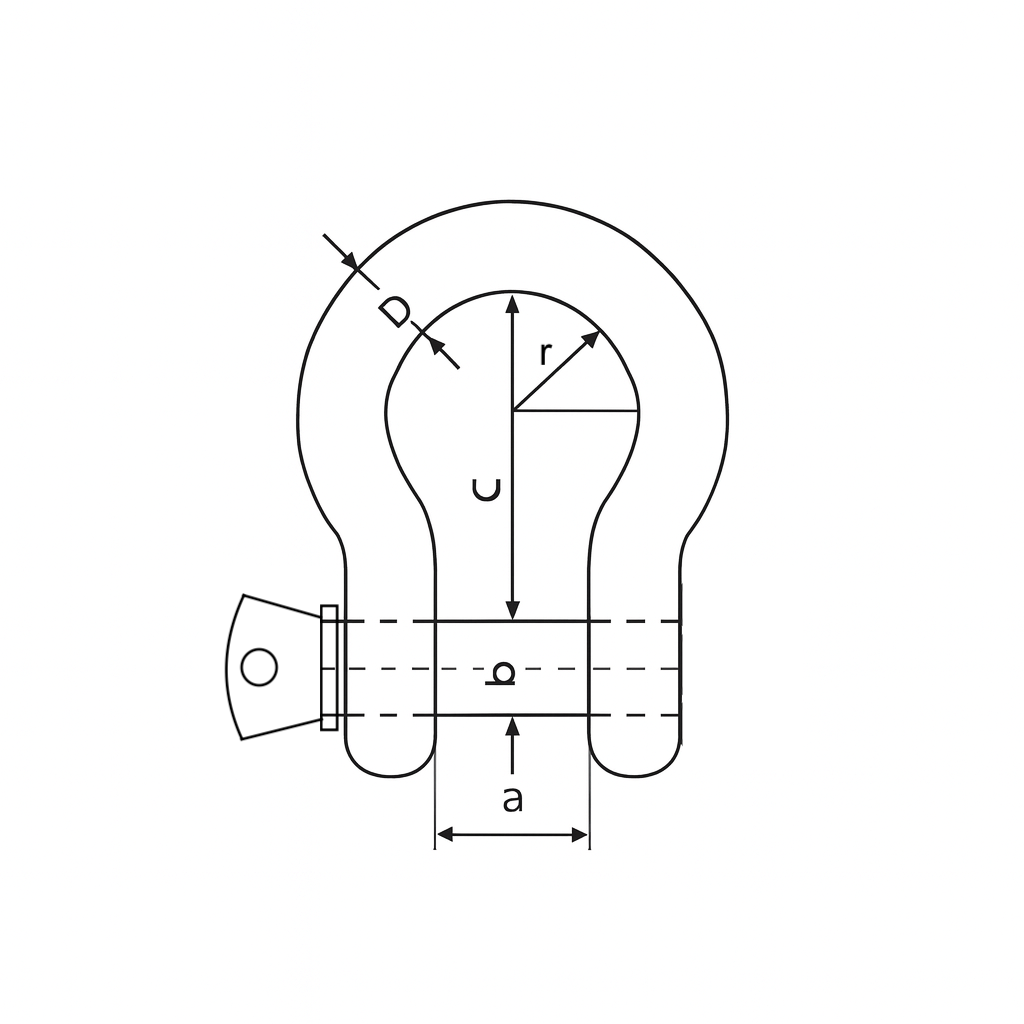

Dimensions:
– Inside Width (a): 22 mm
– Diameter Pin (b): 16 mm
– Inside Length (C): 51 mm
– Diameter Bow (D): 13 mm
– Width of Bow (2xr): 32 mm
