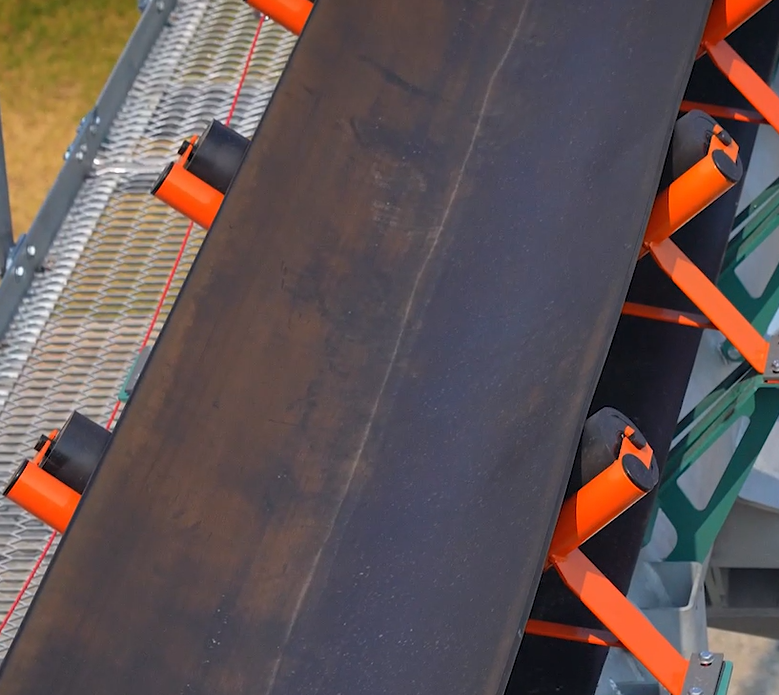

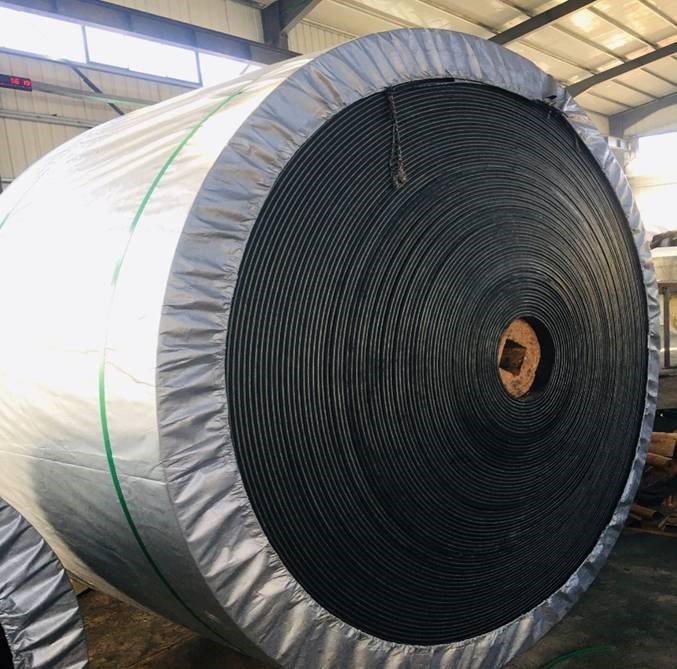

CONVEYOR BELT 750MM – EP 630/4 T5 + B1.6 conveyor belt is engineered for reliable, low‑maintenance material handling in demanding industrial environments. Key features include width 750MM, tensile rating 600, top cover 5.0, bottom cover 1.6. Suitable for mining, quarrying, and bulk‑handling conveyors.

PRODUCT NAMES: CONVEYOR BELT
Class: 630
Belt Width: 750mm
Number of Piles: 4
Coneveyor Material Type: Rubber
REINFORCED MATERIAL: EP – E:Polyester P: Plyamide/Nylon
TOP COVER (mm): 5.0
SKIM RUBBER (mm): 2.2
BOTTOM COVER (mm): 1.6
TOTAL THICKNESS (mm): 11.8
MINIMUM DRIVE PULLEY DIAMETER (mm): 500
MINIMUM TAIL/TAKE-UP PULLY DIAMETER (mm): 400
MINIMUM SNUB PULLEY DIAMETER (mm): 315
TENSILE STRENGTH (kN/m): 600
WORKING TENSION (N/mm): 63.0
ELONGATION (STRETCH L=10m) (mm): 0.2
QTY equals Meter required.
