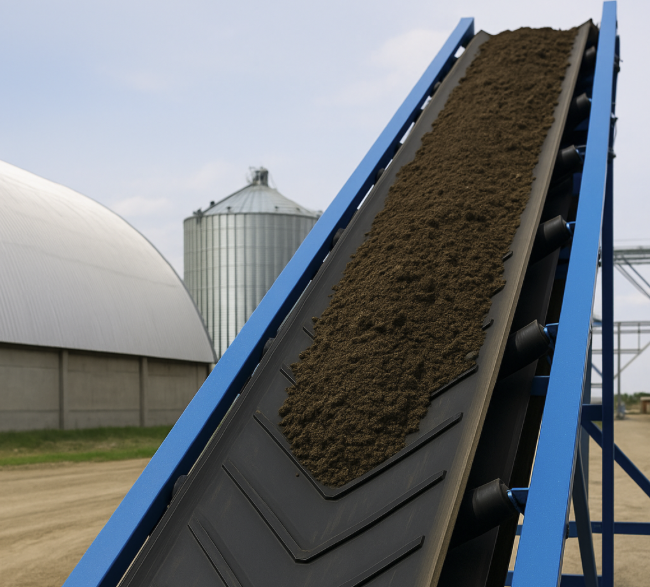

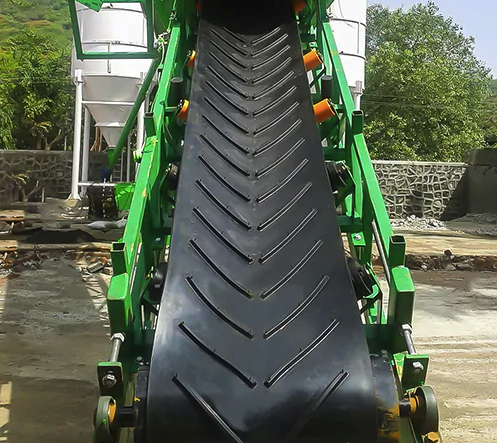

The CHEVRON OPEN V-BELT 750MM 315/3 T3.2 + B1.6 is a durable Chevron Open V-Belt designed for demanding conveyor applications, providing superior grip and load-carrying performance on inclined or high-tension systems. It ensures efficient material flow, reduced slippage, and extended service life in heavy-duty mining and industrial operations.

PRODUCT NAMES: CHEVRON OPEN V-BELT
Class: 315
Belt Width(BW): 750 mm
Number of Piles: 3
Coneveyor Material Type: Rubber
REINFORCED MATERIAL: EP – E:Polyester P: Plyamide/Nylon
TOP COVER (mm): 3.2
SKIM RUBBER (mm): 1.5
BOTTOM COVER (mm): 1.6
TOTAL THICKNESS (mm): 8
MINIMUM DRIVE PULLEY DIAMETER (mm): 400
MINIMUM TAIL/TAKE-UP PULLY DIAMETER (mm): 315
MINIMUM SNUB PULLEY DIAMETER (mm): 250
TENSILE STRENGTH (kN/m): 315
WORKING TENSION (N/mm): 31.5
ELONGATION (STRETCH L=10m) (mm): 0.2

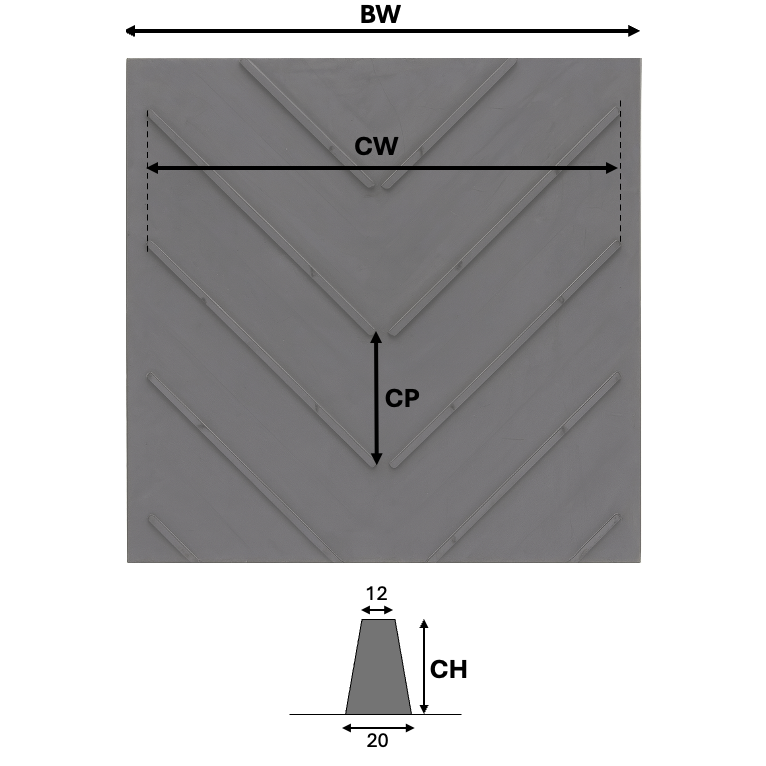

CLEAT WITDTH (CW) (mm): 520
CLEAT PITCH (CP) (mm): 200
CLEAT HEIGHT(CH) (mm): 15

QTY equals Meter Required
