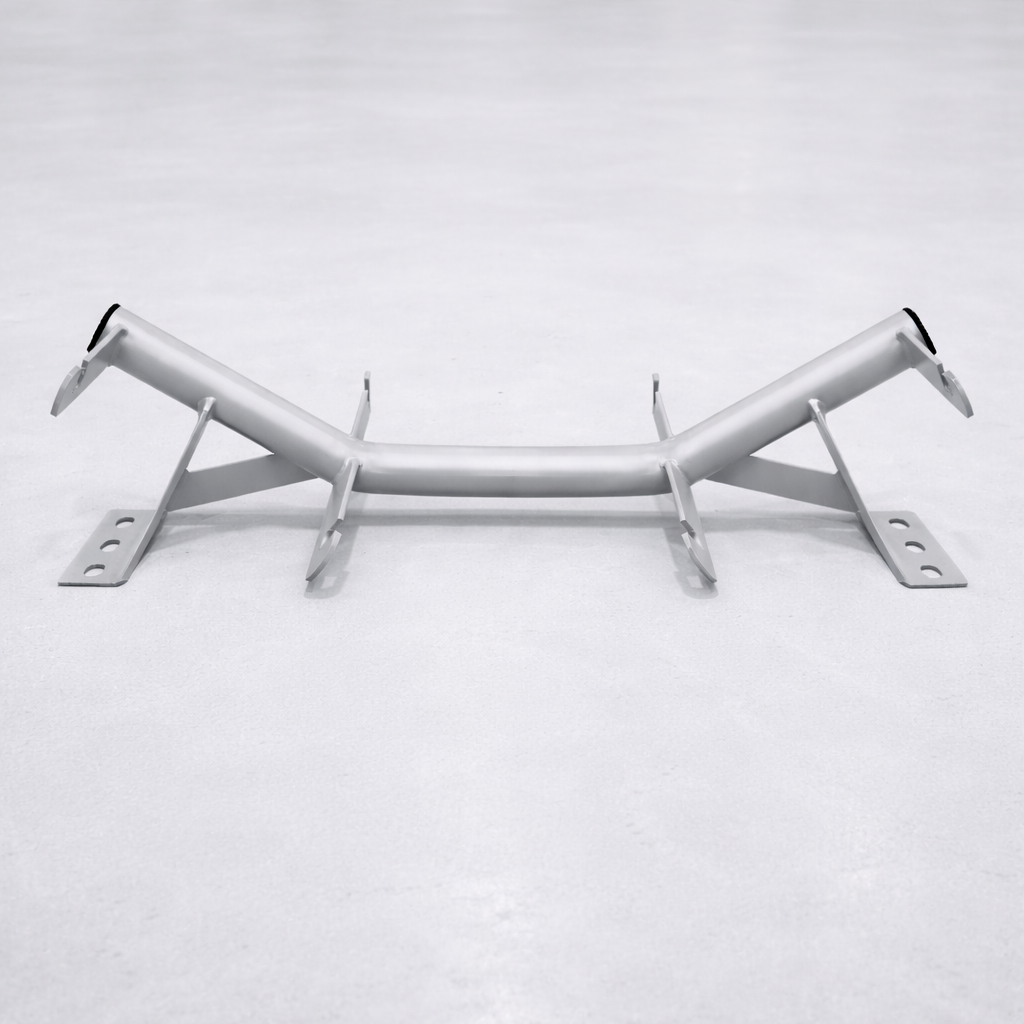

This 3-roll 35-degree tubular idler frame is engineered for demanding conveyor applications in the mining and industrial sectors. Its robust tubular design improves operational safety, supports stable belt tracking, and allows the belt to glide safely on the tube should an idler seize or dismount during operation.

SPECIFICATIONS
PRODUCT NAME: 3-ROLL TROUGHING IDLER FRAME-TUBULAR TROUGHING FRAME 750/S25/35DEG
PRODUCT TYPE: 3-ROLL TROUGHING IDLER FRAME
PRODUCT CONFIGURATION: TUBULAR TROUGHING FRAME 750/S25/35DEG
IDLER TYPE: Series 25
NUMBER OF IDLERS: 3
TROUGHING ANGLE: 35 DEGREES
MATERIAL: CARBON STEEL
COATING: BLACK/GREY FINISH
STANDARD: SANS APPROVED
BELT WIDTH (mm): 750 mm
MOUNTING CENTRES (MC): 990 mm
MOUNTING POINTS (MP): 100 mm
MOUNTING HOLE SIZE (HS): ⌀14 (M12) x 25mm Slot
BASE PLATE LENGTH (BPL): 150 mm
BASE PLATE WIDTH (BPW): 55 mm
TOTAL WIDTH (TW): 1040 mm
ROLL FACE (RF): 290 mm
IDLER END DISTANCE (IED): 747 mm
LOWER IDLER HEIGHT (LH): 203 mm
TOP IDLER HEIGHT (TH): 367 mm

Note: Customers are welcome to contact us should any clarification or additional information be required.
