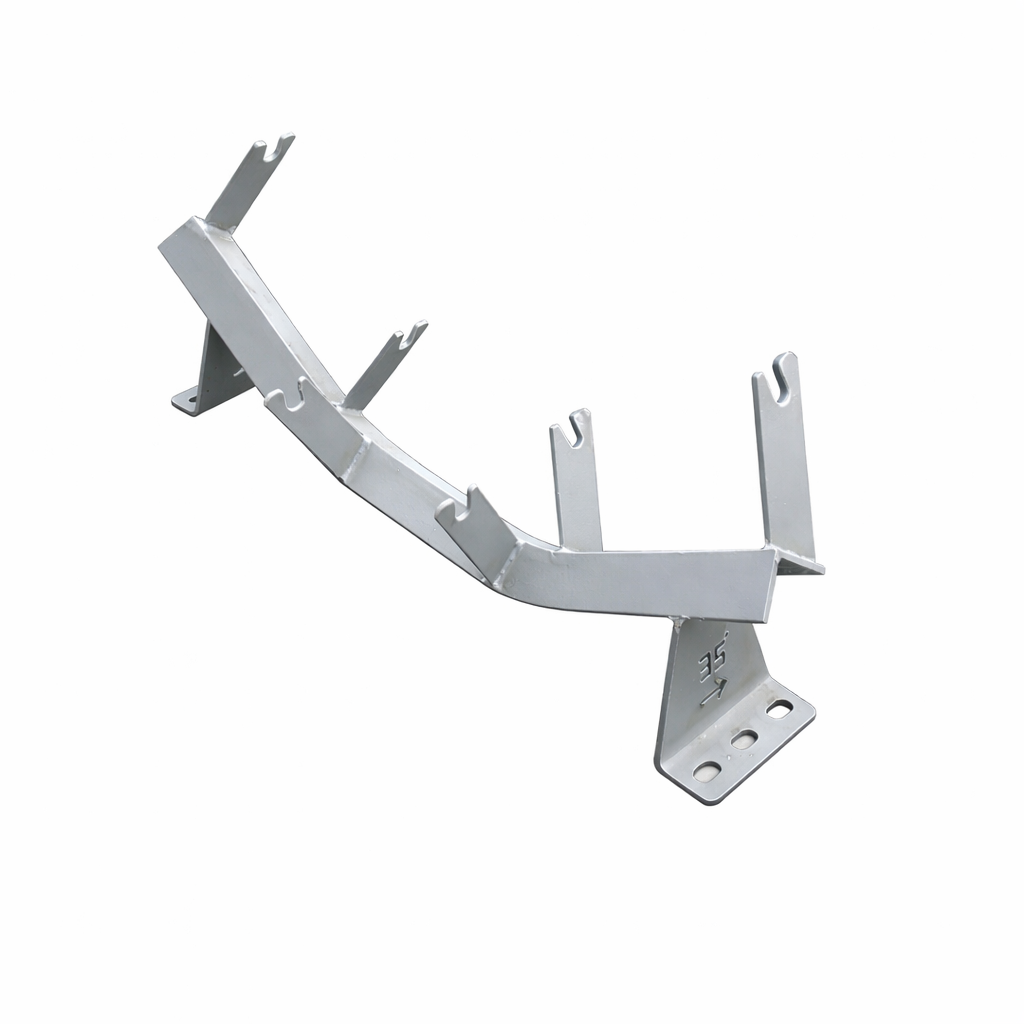

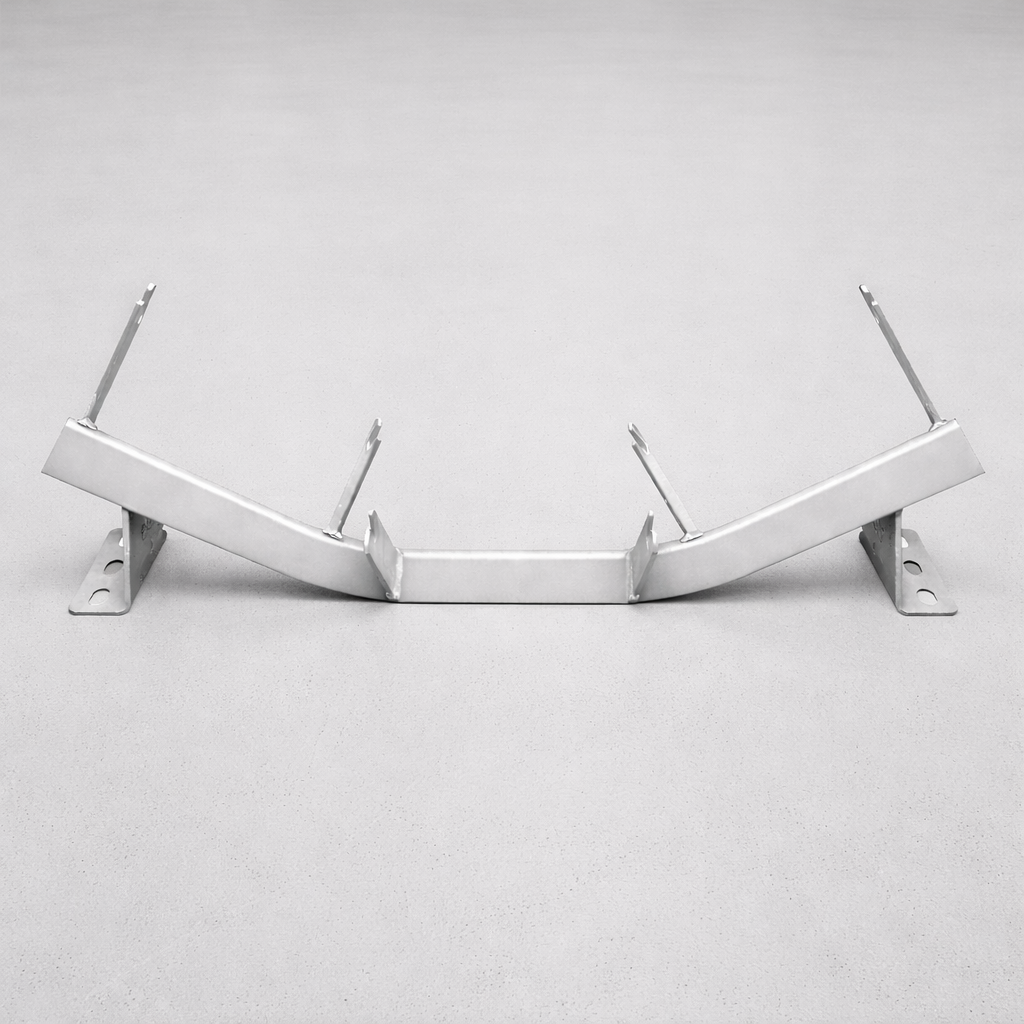

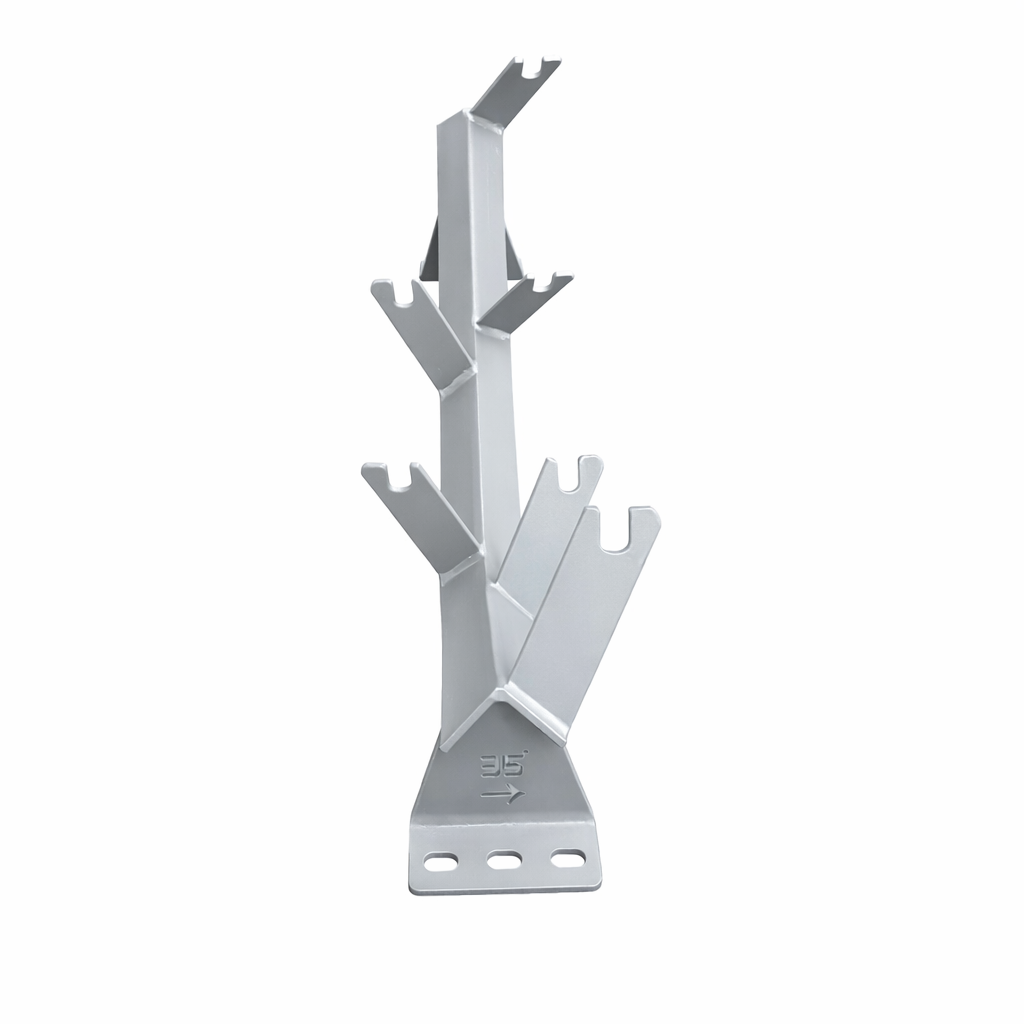

This 3-roll 35° troughing idler frame is engineered for reliable belt support and smooth material flow on medium to heavy-duty conveyors. The angular frame design ensures correct idler alignment, durability, and consistent performance in demanding mining and industrial applications.

SPECIFICATIONS
PRODUCT NAME: 3-ROLL TROUGHING IDLER FRAME-ANGLE TROUGHING FRAME 600/S25/35DEG
PRODUCT TYPE: 3-ROLL TROUGHING IDLER FRAME
PRODUCT NAMES: ANGLE TROUGHING FRAME 600/S25/35DEG
IDLER TYPE: SERIES 25
NUMBER OF IDLERS: 3
TROUGHING ANGLE: 35 DEGREES
MATERIAL: CARBON STEEL
COATING: BLACK/GREY FINISH
BELT WIDTH: 600 mm
MOUNTING CENTRES (MC): 838 mm
MOUNTING POINTS (MP): 100 mm
MOUNTING HOLE SIZE (HS): ⌀14 (M12) x 25mm Slot
BASEPLATE LENGTH (BPL): 150 mm
BASEPLATE WIDTH (BPW): 55 mm
TOTAL WIDTH (TW): 888 mm
ROLL FACE (RF): 240 mm
IDLER END DISTANCE (IED): 615 mm
LOWER IDLER HEIGHT (LH): 203 mm
TOP IDLER HEIGHT (TH): 338 mm

For any clarifications or additional technical information, please contact our team.
